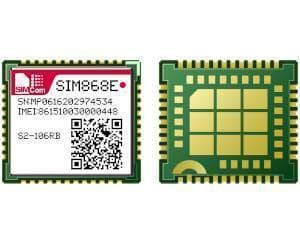

GSM/GPRS+GNSS Module - SIM868E

The SIM868E module is a complete Quad-Band GSM/GPRS module that combines GNSS (GPS/GLONASS/BDS) technology for satellite navigation. It has strong extension capability with abundant interfaces including UART, USB2.0, GPIO, etc. The module provides much flexibility and ease of integration for customer's applications.

Product Advantages

Small size quad-band GSM/GPRS + GNSS module

LCC+LGA form factor with rich interfaces

Rich software functions: DTMF, MMS, MUX

Low power consumption

Embedded TCP/UDP protocols

Multi-constellation GNSS receiver support: GPS, GLONASS, BeiDou

Support BLE4.0

Product Details

General features

Frequency Bands: 850/900/1800/1900MHz

GPRS multi-slot class: 12/10

Dimensions: 17.6*15.7*2.3mm

Weight: 1.5±0.1g

Supply voltage: 3.4 ~ 4.4V

Operation temperature: -40℃ ~ +85℃

Compliant GSM phase 2/2+:

Class 4: 2W @ 850/900MHz

Class 1: 1W @ 1800/1900MHz

Control via AT commands: 3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands

Low Power consumption

GPRS mobile station class B

Specification for GNSS

Receiver type

-33 tracking /99 acquisition -channel

Sensitivity

Tracking: -167 dBm

Reacquisition: -161 dBm

Cold starts: -149 dBm

Time-To-First-Fix

Cold starts: 28s (typ.)

Hot starts: <1s

Warm starts: 22s

Accuracy

Horizontal position: <2.5m CEP

Software features

0710 MUX protocol

Embedded TCP/UDP protocol

FTP/HTTP/POP3/SMTP

MMS

DTMF

Jamming Detection

Audio Record

LBS*

SSL/TLS*

BT 3.0&4.0

TTS*

EAT*

Specifications for SMS via GSM/GPRS

Point to point MO and MT

SMS cell broadcast

Text and PDU mode

Specifications for GPRS Data

GPRS class 12: Uplink/Downlink up to 85.6Kbps

PBCCH support

Coding schemes: CS 1, 2, 3, 4

PPP-stack

USSD

Interfaces

Analog audio interface

UART

USB

(U)SIM card: 1.8V/3V

USB interface

Serial interface

SD

RTC GNSS backup

ADC

I2C

GPIO

Antenna: GSM/GNSS/BT*

Certifications

RoHS\REACH\CCC\CTA\SRRC\Mobile\Unicom\RCM\CE(RED)\GCF\BQB(Bluetooth)\TIM\Deutsche Telekom

Specifications for Voice

Speech Codec Modes:

AMR/HR/FR/EFR

Echo Arithmetic:

AE
